Description
Due to the recent reorganisation of the age groups by the German Shooting Federation, shooters can now start much earlier in the benchrest disciplines.
Many shooters take advantage of this opportunity, but are also still active in the freehand disciplines.

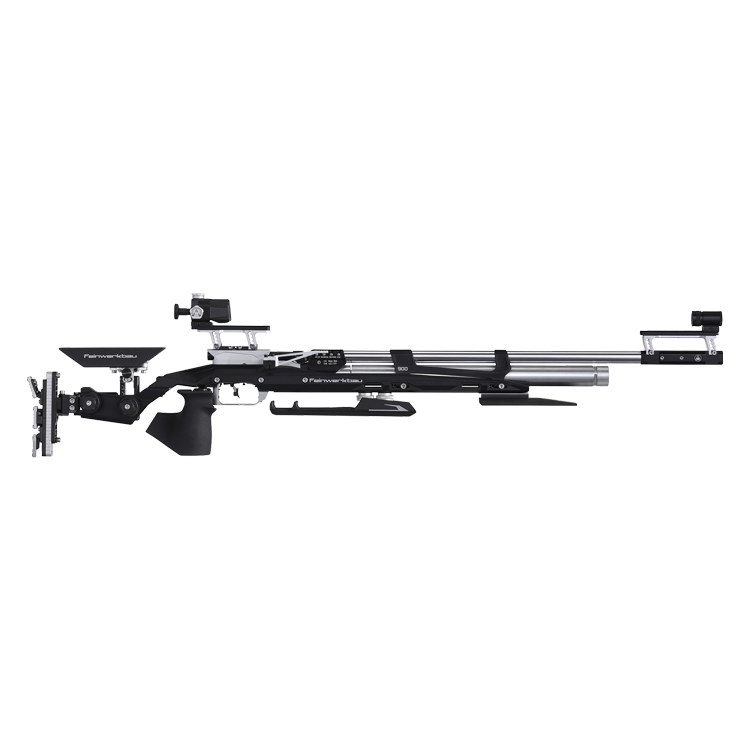

The hybrid models from Feinwerkbau offer optimum conditions for both disciplines.
The special hand rest can be used for both benchrest and freehand shooting. The aluminium rest (140 mm long) can be swivelled and adjusted in length and can be completely removed for use as a freehand weapon.
One air rifle, many possibilities – and of course in the usual Feinwerkbau quality.
The 900 Alu Hybrid model has the same technical features as the 900 Alu model.
Technical data
| Total Length approx. mm | 1.042 – 1.170 mm |
| Total Height approx. mm | 215 – 340 mm |
| Sight Length approx. mm | 610 – 970 mm |
| Sight Height From Barrel Center approx. mm | 27 (40 – 60) mm |
| Barrel Length approx. mm | 425 mm |
| Barrel Ø // Caliber | 15 // 4,5 mm/.177 |
| Total Weight approx. kg | 4,9 kg |
| Stock | Anodized aluminium |
| Stock Length approx. mm | 745 – 880 mm |
| Trigger Weight approx. g | 30 – 160, 80 – 250 g |
| Longitudinal Trigger Adj. mm | 27 mm |
| Length of Barrel Sleve mm | 585 mm |
| Barrel Sleve Ø approx. mm | 19,7 mm |
| Shooting Velocity V0 m/sec | 170 – 175 m/sec |
| Length of Pull mm | 275 – 360 mm |
Downloads
- Manual Model 900 (5.7 MiB)
- Torque specifications Model 900 Alu Hybrid (2.5 MiB)
- Exploded drawing Air Rifle Model 900 Alu Hybrid (stock) (2.6 MiB)
- Exploded drawing Air Rifle Model 900 (System) (2.9 MiB)
- Exploded drawing Rear sight for air and small bore rifles (since February 2007) (235.6 KiB)
- Order Sheet Model 900 Alu Hybrid (1.8 MiB)
- Manufacturer information on handling compressed air cylinders (2.5 MiB)
- Accessories catalog Air Rifle Model 900 Alu Hybrid (3.9 MiB)
